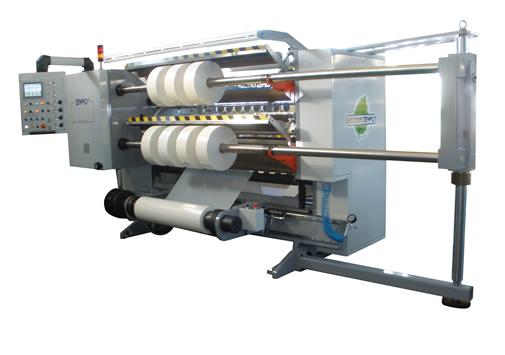

Dual – Shaft Slitter Rewinder SRS 850
Tipologie: Dual-Shaft Slitter Rewinders and Rewinding Diameter up to 500mm.
The new SRS 850/S series joins the best of the simplicity and flexibility to the extremely compact design with single front work side. This new series is able to work a great number of flexible materials and satisfy the more diversified demands.
Standard Equipments
Compact unwinding group “Shaftless” type located in front machine side. Rewinding stations endowed with fully clutched shafts with ball spheres system to lock the cores during the rewound phase. Twin slitting systems with oscillating magnetic razor blades and shear circular blade units. “Laser” aid core positioning system. Main control panel assembled on adjustable pivoting frame. Side rewound roll unloading fork system.
Controls
- All machine controls are managed by wide colour “Touch Screen” unit. This unit is able to store all machine parameters and several work menus for an easy and quick machine set-up.
- Low consumption and high efficiency A.C. asynchronous servo motors managed by last generation digital vector Inverters.
Opzioni:
Independent unwinding “Shaftless” group with footboard or bridge web passage.
Unwinding web tension control managed by A.C. asynchronous servo vector motor driven by fully digital Inverters.
Fully automatic blade unit positioning system.
Counter-balancing system of the squeezing rollers with computerized management implemented through “Touch Screen” unit.
Fully automatic system to “push out” ended rolls.
Fully automatic “Laser” core positioning system for rewinding cores.
Remote web control machine check-up ETHERNET CONNECTION.
Technical data SRS 850 |
||
| Working width | mm | 1.000-1.300-1.600-1.800-2.000 |
| Max batch roll diameter | mm | 800 |
| Max rewound rolls diameter | mm | 500 |
| Minimum cutting width | mm | 20 |
| Max axial displacement of batch roll | mt/min | +/-50 |
| Max slitting speed | mt/min | 600 |
